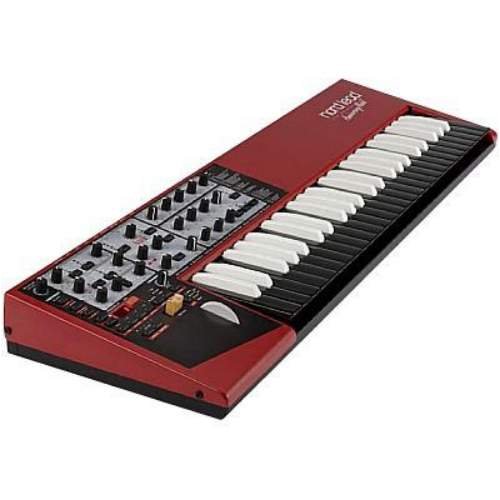

Clavia Nord Lead 2X Keyboard Anniversary Model

Oscillator sectionOscillator 1 generating sine, triangle, sawtooth or pulse wave with adjustable width. Oscillator 2 generating triangle, sawtooth or pulse (with adjustable width) and can also generate noise with a color control. Oscillator 2 can be hard synched to oscillator 1. Linear deep frequency modulation of osc 1 from osc 2. A wide range of new waveforms with a strong formant character is achieved with the synchable noise, where noise can be synched to Osc. 1.Filter section12 dB 2 pole lowpass, 24 dB 4 pole lowpass, bandpass or highpass, Notch + Lowpass. Cut off, resonance, envelope amount, envelope amount controlled by velocity. ADSR envelope. Filter keyboard tracking can be set to full, 2/3, 1/3 or off. Filter distortion.Amplifier sectionADSR envelope, gain control.Modulation sectionLfo 1 generating triangle, saw, pulse, LF filtered noise and random staircase routed to Osc 1+2, Osc 2, filter, pulse-width and FM amount. Lfo 2 produces a triangle waveform, routed to Osc 1 and 2 or amplifier. It also controls the rate for the arpeggiator. Arpeggiator: Range: 1 - 4 octave. Modes: up, down, up/down, random. Echo can be set between 1 and 8 repeats. Modulation envelope (attack, decay) for Osc 2 pitch, FM amount and pulse width.Performance sectionPlay mode: Poly, legato, mono, unison mono, unison poly. Manual mode. Four program slots for layering possibilities. Portamento/Auto portamento.Percussion kits40 user analog percussion kits. Each percussion kit holds 8 independent sounds, configured in 8 zones across the keyboard.Internal memoryPrograms (single sounds): 990 (396 (4 x 99) user, 594 (6 x 99) factory).Performances (multi sounds): 400 (100 user, 300 (3 x 100) factory).Percussion kits (multi zone sounds): 40 (4 x 10) user.Audio Out4 outputs. Each slot can have its own output. Modes: Stereo, mono and multitimbral mode. Headphones output. High resolution, low noise 24-bit DACs running at 96kHz.
